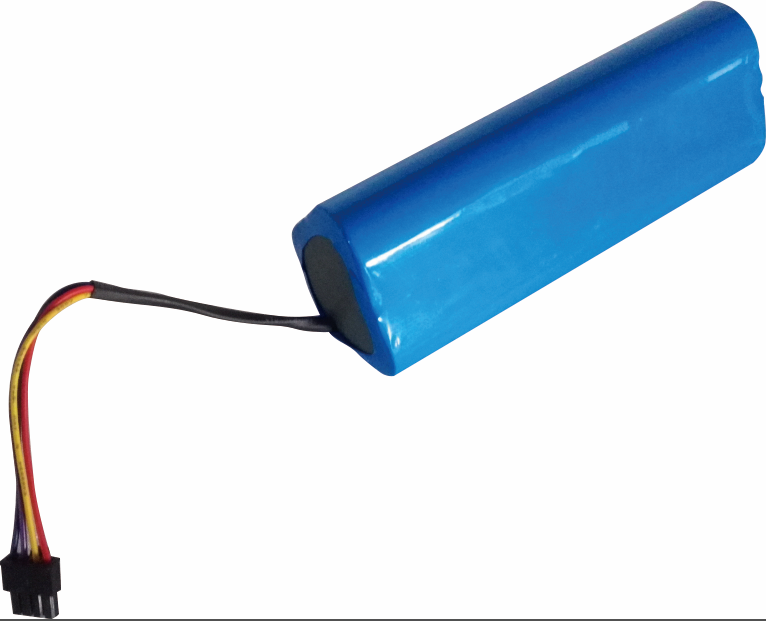

LiFePO4 9.6V3Ah Lithium Ion Battery Pack For Emergency Lamp Customized Batteries
Koxin specializes in custom lithium battery packs, coin cell & polymer Li-ion batteries, and smart BMS solutions. We provide small-scale, niche battery products with reliable quality and OEM customization.
LFP Battery Pack · OEM Battery Pack Design
Inquire about this productProduct details
|
No. |
Items |
Parameter |
|
|
1 |
Product Model |
LFP9.6V3Ah Battery Pack(18650-3S2P) | |
|
2 |
Normal Voltage |
9.6V | |
|
3 |
Rated Capacity |
3.0Ah | |
|
4 |
Min Capacity |
2.8Ah | |
|
5 |
Energy |
28.8WH | |
|
6 |
Internal Resistance |
≤80mΩ | |
|
7 |
Size |
||
|
8 |
weight |
330±30g | |
|
9 |
Shell material |
PVC | |
|
10 |
Charge Voltage |
10.95V | |
|
11 |
Standard Cutoff Voltage |
7.5V | |
|
12 |
Charge Current |
≤1.5A | |
|
13 |
Charging cut-off current |
0.01C-0.02C | |
|
14 |
Discharge Current |
Normal Current |
≤10A |
|
15 |
Passive Protection Function |
Over charge protection, Over discharge protection, Temperature protection, Balanced function |
|
|
16 |
Positive |
JST Connector 20AWG 110mm | |
|
17 |
Negative |
JST Connector 20AWG 110mm | |
|
18 |
Charge Retention |
After charging according to standard 3.2, placing the battery for 28 days under the standard test conditions, then discharge it under standard 3.3, and the charge retention rate is ≥80%. |
|
|
19 |
Cycle time |
The cycle life is not less than 2000, the capacity retention rate is ≥80%. (Charging according to 3.2 standard, leaving 0.5~1h; discharging according to 3.3 standard, leaving 0.5~1h, counting 1 cycle time). |
|
