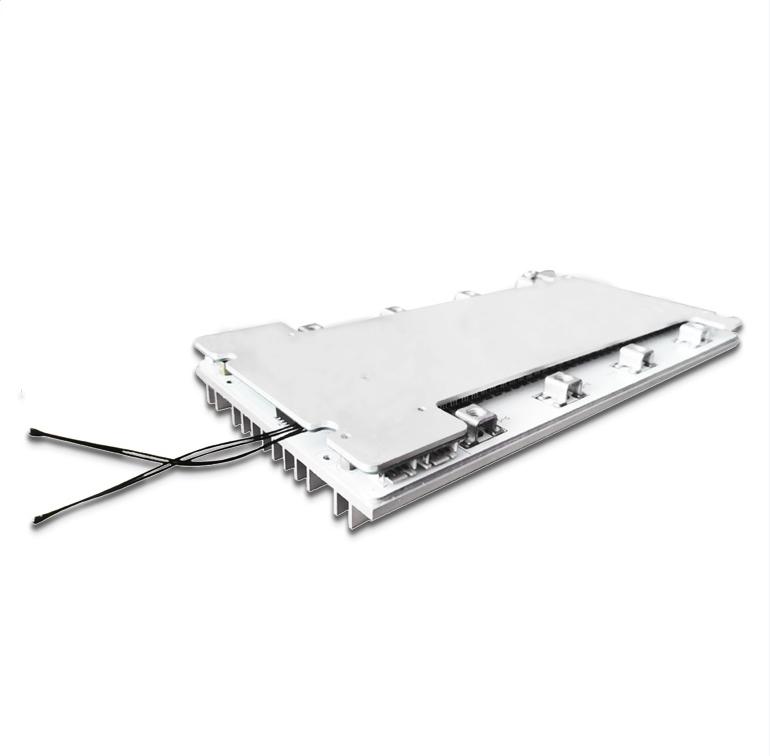

3-4S 200A LiFePO4 Lithium Battery Protection Board with RS485 &BluetoothManufacturer
Koxin specializes in custom lithium battery packs, coin cell & polymer Li-ion batteries, and smart BMS solutions. We provide small-scale, niche battery products with reliable quality and OEM customization.
Custom BMS · LFP Battery Circuit Board · NMC Battery Circuit Board · Smart BMS
Inquire about this productProduct details
| ltem | PCM-L04S200-G25（NCM） | PCM-L04S200-G25（LiFePO4） |
| Max continious current | 200A | 200A |
| Series | 3-4S | 3-4S |
| Internal resistance | ≤5mΩ | ≤5mΩ |
| Overcharge protection voltage | 4.25±0.1V | 3.75±0.1V |
| Overcharge protection delay time | 2±0.5S | 2±0.5S |
| Overcharge recovery voltage | 4.15±0.1V | 3.5±0.1V |
| Overdischarge protection voltage | 2.7±0.1V | 2.20±0.1V |
| Overdischarge protection delay time | 2±0.5S | 2±0.5S |
| Overdischarge recovery voltage | 3.00±0.1V | 2.70±0.1V |
| Balance Start Voltage | 4.2±1V | 3.5±1V |
| Balance Start Current | 42±10mA | 116±10mA |
| Charging Overcurrent Protection | 220±20A (Delay 10S) | |
| Short circuit Overcurrent Protection | 1050A ±150A(≤488 uS) | |
| Over-Temperature Protection | 70±2℃(Delay 2S) | |
| Charging Low-Temperature Protection | ‘-10±2℃(Delay 2S) | |
| Discharging Low-Temperature Protection | -20±2℃(Delay 2S) | |
| Short circuit protection | YES | |
| Recovery state | Disconnect load or Software rest | |
| Balancing Function | YES | |
| Dimension | 235*120*30mm | |
| With NTC | YES | |
| With Bluetooth | Optional | |
| With Pre-charge, Pre-discharge Function | YES | |
| RS485/CAN/UART | YES | |
| Customize | YES | |
