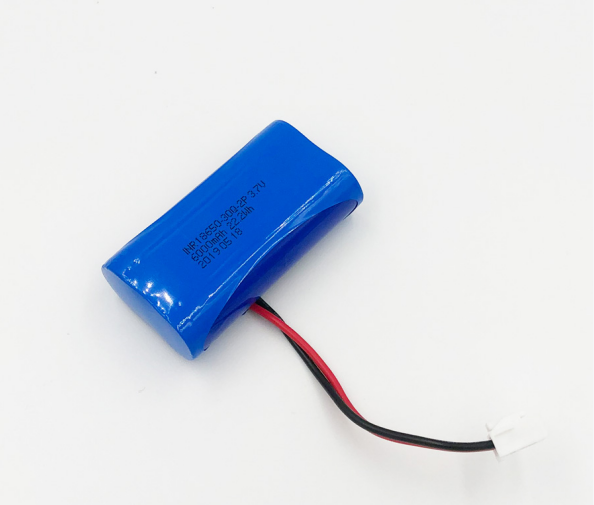

NMC 1S2P 3.7V6000mAh Litihium Battery For Lights Long Cycle Life
Koxin specializes in custom lithium battery packs, coin cell & polymer Li-ion batteries, and smart BMS solutions. We provide small-scale, niche battery products with reliable quality and OEM customization.
NMC Battery Pack · OEM Battery Pack Design
Inquire about this productProduct details
|
No. |
Items |
Parameter |
|
|
1 |
Product Model |
NMC 18650-3.7V6000mAh 1S2P |
|
|
2 |
Normal Voltage |
3.7V |
|
|
3 |
Rated Capacity |
6000 mAh(C5) |
|
|
4 |
Min Capacity |
5500 mAh(C5) |
|
|
5 |
Energy |
About 22.2 Wh |
|
|
6 |
Internal Resistance |
≤100mΩ |
|
|
7 |
Size |
（38±1）mm*（19.5±1）mm*（72±1）mm |
|
|
8 |
weight |
110±10g |
|
|
9 |
Shell material |
PVC |
|
|
10 |
Charge Voltage |
4.2±0.15V |
|
|
11 |
Standard Cutoff Voltage |
about 2.75V |
|
|
12 |
Charge Current |
≤3A |
|
|
13 |
Charging cut-off current |
0.02C |
|
|
14 |
Discharge Current |
Normal Current |
≤6A |
|
15 |
Passive Protection Function |
Over charge protection, Over discharge protection, Balanced function |
|
|
16 |
Positive |
JST Connector 22AWG 60mm |
|
|
17 |
Negative |
JST Connector 22AWG 60mm |
|
|
18 |
Charge Retention |
After charging according to standard 3.2, placing the battery for 28 days under the standard test conditions, then discharge it under standard 3.3, and the charge retention rate is ≥80%. |
|
|
19 |
Cycle time |
The cycle life is not less than 500, the capacity retention rate is ≥80%. (Charging according to 3.2 standard, leaving 0.5~1h; discharging according to 3.3 standard, leaving 0.5~1h, counting 1 cycle time). |
|
