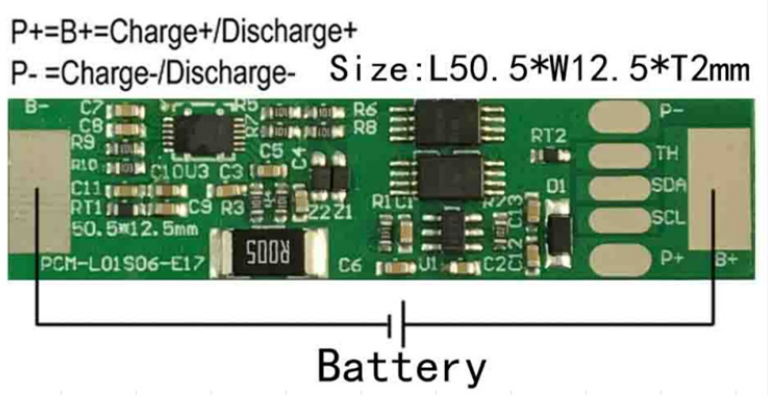

China Lithium Battery BMS I2C Communication 1S5A For LiFePO4/Lithium Ion Battery Pack

电池组组合方式 Pack method

1S

保护板类型（同口或分口）

同口

充电电流 Charge current

5A

可持续放电电流 Continuous discharge current

5A

过充保护Over charge protection

过充保护电压Over charge protection voltage

4.25/3.65±0.005V

过充保护延迟时间Over charge detection delay time

0.5S-1.5S

过充保护恢复电压Over charge release voltage

4.05/3.5±0.05V

过放保护Over discharge protection

过放保护电压Over discharge detection voltage

2.8/2.5±0.05V

过放保护延迟时间Over discharge detection delay time

20mS-190mS

过放保护恢复电压Over discharge release voltage

3.0±0.1V

过放恢复方式Over discharge release method

Automatic recovery after disconnection of load

过流保护Over current protection

过流保护Over current detection current

12±3A

过流检测延迟时间Detection delay time

5ms—25ms

过流恢复方式Release condition

Automatic recovery after disconnection of load

短路保护Short protection

短路保护Detection condition

 Yes

短路检测延迟时间Detection delay time

200-500us

短路保护恢复方式Release condition

Automatic recovery after disconnection of load

温度保护Temperature protection

放电保护温度Discharge temperature protection

/

放电保护恢复温度Discharge protection release temperature

/

充电保护温度Charge temperature protection

/

充电保护恢复温度Charge protection release temperature

/

均衡状态

Balance

均衡开启电压Balance open voltage

/

均衡电流Balance current

/

均衡Balance method

/

其他参数Other parameters

静态功耗Static consume

≤10uA

单节自耗电

/

回路通态内阻Protection circuitry

≤50mΩ

储存环境Storage environment

工作温度 Working temperature

-40～+85℃

工作湿度Working humidity

0～95%

存储温度Storage Temperature Range

-40～+125℃

存储湿度Storage humidity

0～95%

尺寸Size

14*13.6mm

Communication

I2C Communication

MOS管型号
