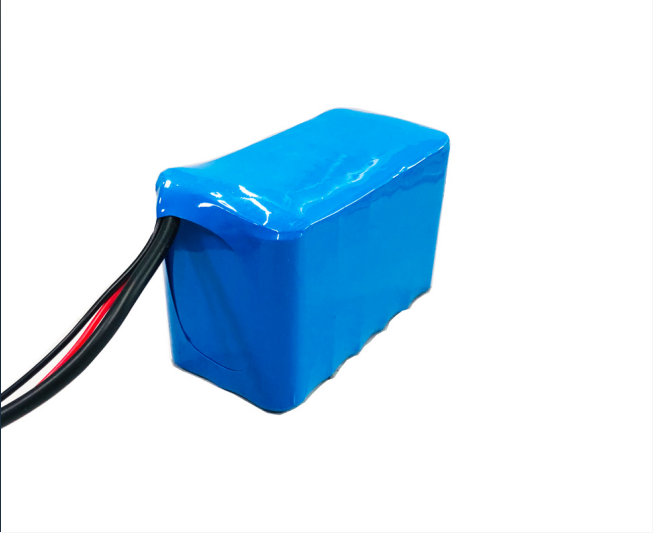

19.2V LiFePO4 Smart Battery Pack with RS485 and CAN Bus
Evaluate 19.2V LiFePO4 Smart Battery Pack with RS485 and CAN Bus against your device requirements. Use the specification below to shortlist the configuration, then confirm the drawing, load profile and sample approval criteria.
View specifications · Check compatibility
Discuss this configuration on WhatsApp
Digital Batteries · LiFePO4 Battery Packs · OEM Battery Pack Design · Smart Battery Pack
Ask about this product on WhatsAppProduct details
Product specification details
Confirm specifications for your project
Capacity, energy rating and current limits require confirmation for this product. Contact Koxin for the current model-specific specification before selecting a charger, integrating the battery or placing an order.
|
No. |
Items |
Parameter |
|
|
1 |
Product Model |
19.2V LiFePO4 Smart Battery Pack with RS485 and CAN Bus |
|
|
2 |
Normal Voltage |
19.2V |
|
|
3 |
Rated Capacity |
Please contact Koxin to confirm for the selected configuration. |
|
|
4 |
Min Capacity |
Please contact Koxin to confirm for the selected configuration. |
|
|
5 |
Energy |
Please contact Koxin to confirm for the selected configuration. |
|
|
6 |
Internal Resistance |
≤120mΩ |
|
|
7 |
Size |
(159±1)mm*(8070±1)mm*(85±1)mm |
|
|
8 |
weight |
1.9±0.3 Kg |
|
|
9 |
Shell material |
PVC |
|
|
10 |
Charge Voltage |
21.9±0.15V |
|
|
11 |
Standard Cutoff Voltage |
about 15V |
|
|
12 |
Charge Current |
Please contact Koxin to confirm for the selected configuration. |
|
|
13 |
Charging cut-off current |
0.02C |
|
|
14 |
Discharge Current |
Please contact Koxin to confirm for the selected configuration. |
Please contact Koxin to confirm for the selected configuration. |
|
15 |
Passive Protection Function |
Over charge protection, Over discharge protection, Short Circuit Protection, Over Current Protection, Communication Function |
|
|
16 |
Positive |
JST Connector 22AWG 100mm |
|
|
17 |
Negative |
JST Connector 22AWG 100mm |
|
|
18 |
Charge Retention |
After charging according to standard 3.2, placing the battery for 28 days under the standard test conditions, then discharge it under standard 3.3, and the charge retention rate is ≥80%. |
|
|
19 |
Cycle time |
The cycle life is not less than 2000, the capacity retention rate is ≥80%. (Charging according to 3.2 standard, leaving 0.5~1h; discharging according to 3.3 standard, leaving 0.5~1h, counting 1 cycle time). |
|
