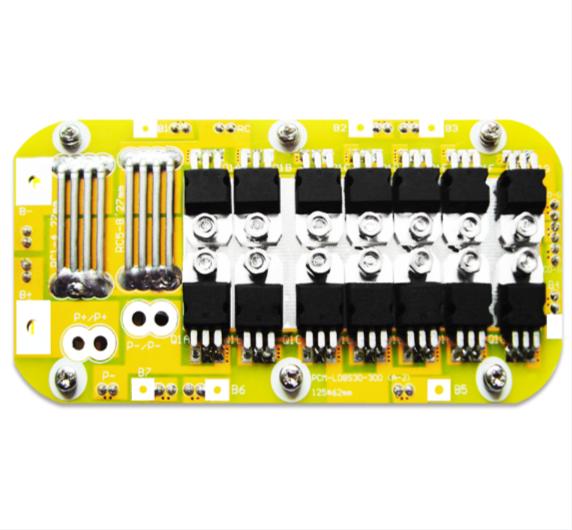

8S 30A LiFePO4 BMS for 24V E-Bikes & Solar Storage – Overcurrent/Short Circuit Protection
Koxin specializes in custom lithium battery packs, coin cell & polymer Li-ion batteries, and smart BMS solutions. We provide small-scale, niche battery products with reliable quality and OEM customization.
Custom BMS · LFP Battery Circuit Board · NMC Battery Circuit Board
Inquire about this productProduct details
| ltem | PCM-L08S30-300 |
| Max continious current | 30A |
| Internal resistance | ≤50mΩ |
| Overcharge protection voltage | 3.90±0.1V |
| Overcharge protection delay time | 0.5-2S |
| Overcharge recovery voltage | 3.8±0.1V |
| Overdischarge protection voltage | 2.00±0.1V |
| Overdischarge protection delay time | 10-200mS |
| Overdischarge recovery voltage | 2.50±0.1V |
| Overcurrent protection | 100±20A |
| Short circuit protection | YES |
| Recovery state | Disconnect load |
| Balancing Function | YES |
| Dimension | 125*62*20mm |
| Customize | YES |
| With NTC | YES |
