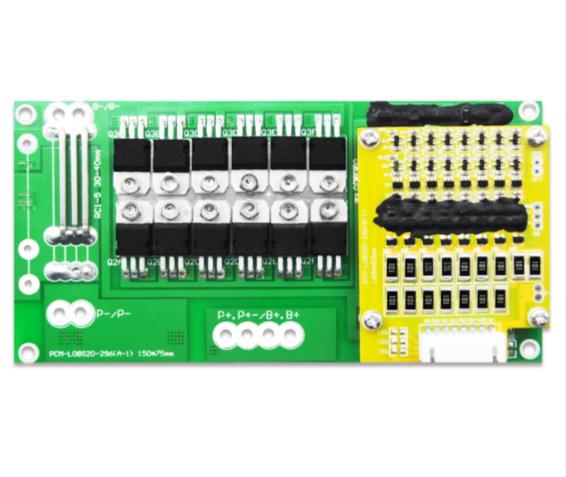

8S 24V 20A Lithium Battery BMS with Balancing

For battery pack assemblers and OEM engineering teams evaluating 8S 24V 20A Lithium Battery BMS with Balancing. Review the configuration and integration requirements before placing a sample order.

View specifications · Check compatibility

Discuss this configuration on WhatsApp

· ·

Ask about this product on WhatsApp

Product details

Before selecting this BMS

For battery pack assemblers and OEM engineering teams evaluating 8S 24V 20A Lithium Battery BMS with Balancing. Review the configuration and integration requirements before placing a sample order.

Chemistry and series count
Confirm the ordered chemistry, series configuration and protection thresholds. Where the table has multiple chemistry columns, specify which configuration you need.
Current and thermal conditions
Send continuous current, peak current with duration, charging current and enclosure cooling conditions. Confirm the board rating for the intended assembly.
Wiring and recovery
Request the connection diagram, port arrangement, connector pinout and protection recovery procedure for the exact board revision.

Product specification details

ltem PCM-L08S20-296
Max continious current 20A
Internal resistance ≤20mΩ
Overcharge protection voltage 3.90±0.1V
Overcharge protection delay time 0.5-2S
Overcharge recovery voltage 3.8±0.1V
Overdischarge protection voltage 2.00±0.1V
Overdischarge protection delay time 10-200mS
Overdischarge recovery voltage 2.50±0.1V
Overcurrent protection 100±20A
Short circuit protection YES
Recovery state Disconnect load
Balancing Function YES
Dimension 150*75*18mm
Customize YES
With NTC Optional

Questions before ordering

How do I choose the correct board configuration?

Match cell chemistry, series count, current requirements and protection thresholds. Ask for the wiring drawing and verify the ordered configuration on a sample pack.

What should I send for a quotation?

Send chemistry, series count, continuous and peak current, charge current, protection settings, board dimensions, communication requirements and sample and production quantities. Confirm hardware and firmware revisions for repeat orders.

Which documents should I request?

Request the exact configuration specification, mechanical drawing and wiring information. State the destination and required compliance documents. Available reports must match the ordered product; this page does not establish certification coverage.
