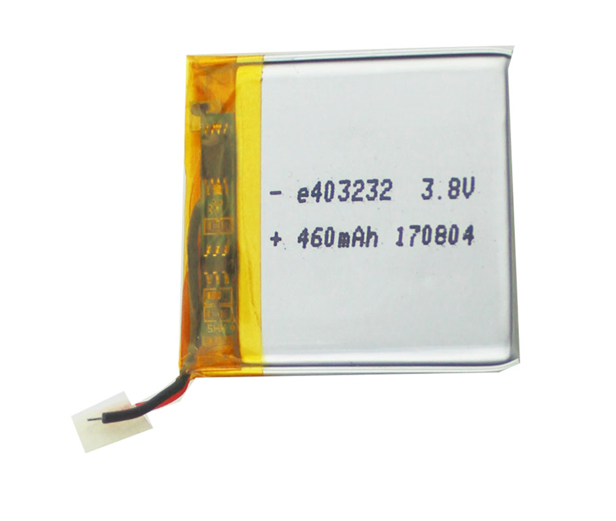

403232 460mAh LiPo Battery with Protection Board
Evaluate 403232 460mAh LiPo Battery with Protection Board against your device requirements. Use the specification below to shortlist the configuration, then confirm the drawing, load profile and sample approval criteria.
View specifications · Check compatibility
Discuss this configuration on WhatsApp
Digital Batteries · NMC Batteries · NMC Battery Packs · OEM Battery Pack Design · Primary Battery Design
Ask about this product on WhatsAppProduct details
Product specification details
Confirm specifications for your project
Nominal voltage, pack configuration, charging limits and energy rating require confirmation for this product. Contact Koxin for the current model-specific specification before selecting a charger, integrating the battery or placing an order.
|
No. |
Items |
Parameter |
|
|
1 |
Product Model |
403232 460mAh LiPo Battery with Protection Board |
|
|
2 |
Normal Voltage |
Please contact Koxin to confirm for the selected configuration. |
|
|
3 |
Rated Capacity |
460mAh(C5) |
|
|
4 |
Min Capacity |
440mAh(C5) |
|
|
5 |
Energy |
Please contact Koxin to confirm for the selected configuration. |
|
|
6 |
Internal Resistance |
≤75mΩ |
|
|
7 |
Max Size |
4*32*32mm |
|
|
8 |
weight |
// |
|
|
9 |
Shell material |
PVC |
|
|
10 |
Charge Voltage |
Please contact Koxin to confirm for the selected configuration. |
|
|
11 |
Standard Cutoff Voltage |
Please contact Koxin to confirm for the selected configuration. |
|
|
12 |
Charge Current |
≤ 200mA |
|
|
13 |
Charging cut-off current |
0.02C |
|
|
14 |
Discharge Current |
Normal Current |
≤ 700mA |
|
15 |
Passive Protection Function |
Over charge protection, Over discharge protection, Over Current Protection |
|
|
16 |
Positive |
JST Connector 22AWG 100mm |
|
|
17 |
Negative |
JST Connector 22AWG 100mm |
|
|
18 |
Charge Retention |
After charging according to standard 3.2, placing the battery for 28 days under the standard test conditions, then discharge it under standard 3.3, and the charge retention rate is ≥80%. |
|
|
19 |
Cycle time |
The cycle life is not less than 300, the capacity retention rate is ≥80%. (Charging according to 3.2 standard, leaving 0.5~1h; discharging according to 3.3 standard, leaving 0.5~1h, counting 1 cycle time). |
|
