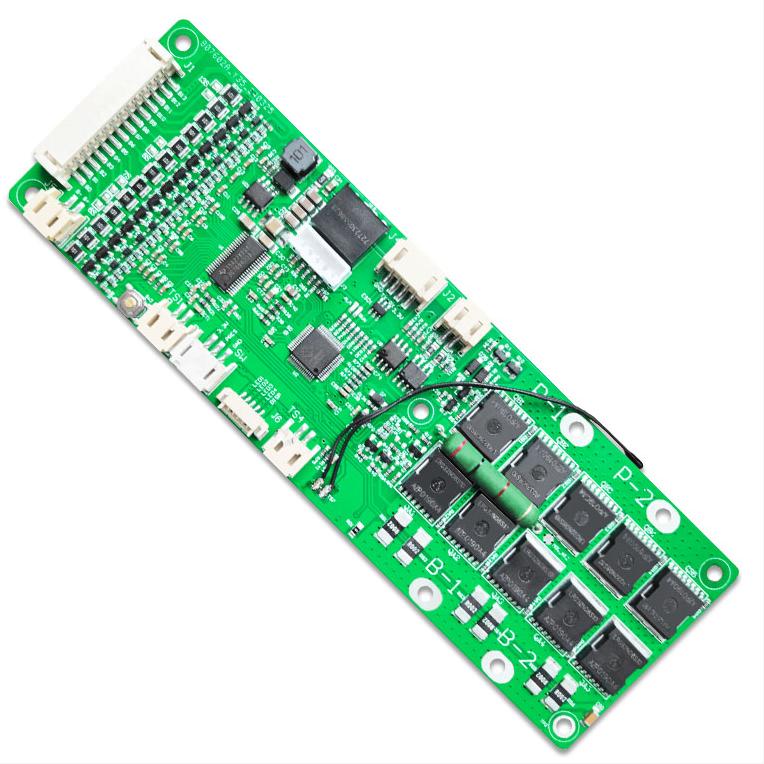

60A Common Port Smart BMS for 9–13S 36V Li-ion/LiFePO4 Battery with RS485 | Manufacturer Supply

ltem	PCM-L13S60-M03（NCM）	PCM-L13S60-M03（LiFePO4）
Max continious current	60A	60A
Series	9-13S	9-13S
Internal resistance	≤5mΩ	≤5mΩ
Overcharge protection voltage	4.25±0.1V	3.70±0.1V
Overcharge protection delay time	2±0.3S	2±0.3S
Overcharge recovery voltage	4.10±0.1V	3.50±0.1V
Overdischarge protection voltage	2.8±0.1V	2.2±0.1V
Overdischarge protection delay time	2±0.3S	2±0.3S
Overdischarge recovery voltage	3.0±0.1V	2.50±0.1V
Balance Start Voltage	4.2±0.1V	3.6±0.1V
Balance Start Current	42±5mA	36±5mA
Charging Overcurrent Protection	70±10A (Delay 1S)
Short circuit Overcurrent Protection	180±10A (≤64 uS)
Over-Temperature Protection	65±3℃(Delay 1S)
Charging Low-Temperature Protection	‘-40±3℃(Delay 1S)
Discharging Low-Temperature Protection	-40±3℃(Delay 1S)
Mos temperature	90±3℃
Short circuit protection	YES
Recovery state	Disconnect load or Software rest
Balancing Function	YES
Dimension	155*50*13.5mm
With NTC	YES
With Bluetooth	Optional
With Pre-charge, Pre-discharge Function	YES
RS485/CAN/UART	YES
Customize	YES

Product Highlights:
This 60A Smart BMS is designed for 9–13S Li-ion or LiFePO4 battery packs (nominal voltage 28V–43V), offering wide compatibility for various medium-voltage applications. It features a common port design for both charge and discharge, simplifying wiring and ensuring efficient power delivery. With RS485 communication, users can integrate the BMS into industrial or telecom systems for real-time monitoring and remote diagnostics. Built with industrial-grade components and a robust PCB layout, it supports continuous 60A discharge with comprehensive protection functions including overcharge, overdischarge, overcurrent, short circuit, and temperature protection. Ideal for use in AGV systems, telecom backup batteries, medical equipment, and solar energy storage, this BMS is a reliable choice for manufacturers seeking durable and intelligent battery management solutions.
