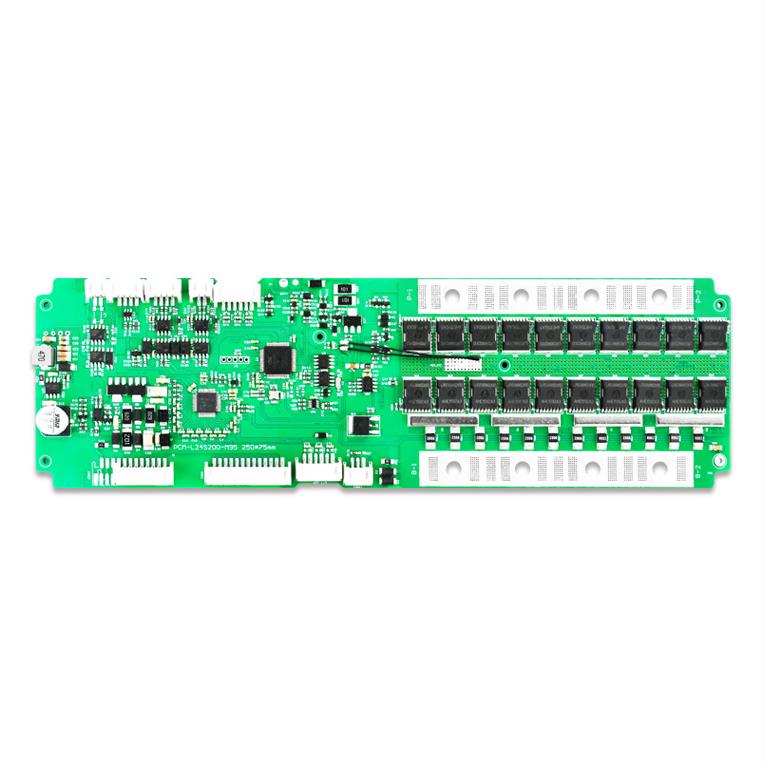

16–24S 200A Smart BMS with RS485 and Bluetooth

For battery pack assemblers and OEM engineering teams evaluating 16–24S 200A Smart BMS with RS485 and Bluetooth. Review the configuration and integration requirements before placing a sample order.

View specifications · Check compatibility

Discuss this configuration on WhatsApp

· · ·

Ask about this product on WhatsApp

Product details

Before selecting this BMS

For battery pack assemblers and OEM engineering teams evaluating 16–24S 200A Smart BMS with RS485 and Bluetooth. Review the configuration and integration requirements before placing a sample order.

Chemistry and series count
Confirm the ordered chemistry, series configuration and protection thresholds. Where the table has multiple chemistry columns, specify which configuration you need.
Current and thermal conditions
Send continuous current, peak current with duration, charging current and enclosure cooling conditions. Confirm the board rating for the intended assembly.
Wiring and recovery
Request the connection diagram, port arrangement, connector pinout and protection recovery procedure for the exact board revision.
Host communication
Request the protocol document, pin definitions and firmware revision. Match the host messages and supported functions before approving the sample.

Product specification details

ltem PCM-L24S200-M95(NCM) PCM-L24S200-M95(LiFePO4)
Max continious current 200A 200A
Series 16-24S 16-24S
Internal resistance ≤5mΩ ≤5mΩ
Overcharge protection voltage 4.23±0.1V 3.75±0.1V
Overcharge protection delay time 1S 1S
Overcharge recovery voltage 4.10±0.1V 3.50±0.1V
Overdischarge protection voltage 2.85±0.1V 2.3±0.1V
Overdischarge protection delay time 1S 1S
Overdischarge recovery voltage 3.1±0.1V 2.50±0.1V
Balance Start Voltage 4.2±0.1V 3.6±0.1V
Balance Start Current 68±10mA 58±10mA
Charging Overcurrent Protection 240±30A (Delay 1S)
Short circuit Overcurrent Protection 1400±100A (≤400 uS)
Over-Temperature Protection 75±3℃(Delay 1S)
Charging Low-Temperature Protection ‘-10±3℃(Delay 1S)
Charging High-Temperature Protection
Discharging Low-Temperature Protection -20±3℃(Delay 1S)
Mos temperature 100±3℃
Short circuit protection YES
Recovery state Disconnect load or Software rest
Balancing Function YES
Dimension 250*75*14mm
With NTC YES
With Bluetooth Optional
With Pre-charge, Pre-discharge Function YES
RS485/CAN/UART YES
Customize YES

Questions before ordering

Will the communication interface work with my controller?

The interface name alone does not establish compatibility. Provide your controller details and required messages, and request the protocol and a sample integration check.

What should I send for a quotation?

Send chemistry, series count, continuous and peak current, charge current, protection settings, board dimensions, communication requirements and sample and production quantities. Confirm hardware and firmware revisions for repeat orders.

Which documents should I request?

Request the exact configuration specification, mechanical drawing and wiring information. State the destination and required compliance documents. Available reports must match the ordered product; this page does not establish certification coverage.
